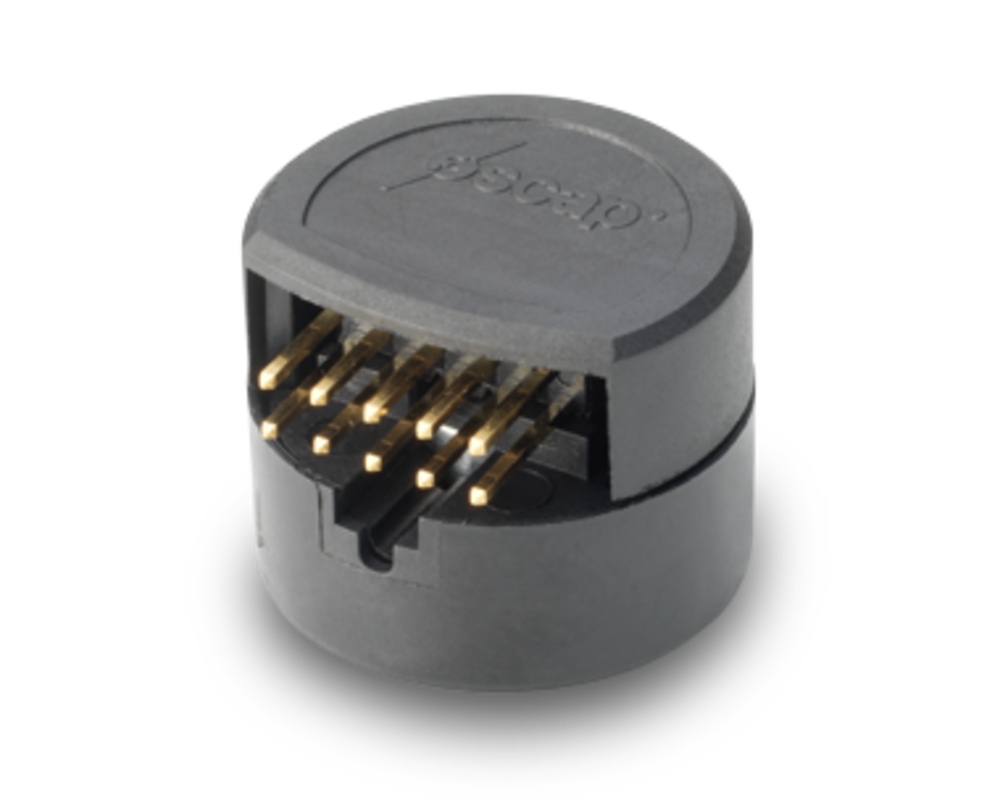

E9 Optical Encoder
E9
The E9 transmissible optical encoder provides 500 lines per revolution for precise positioning and differential output.
Product Highlights
- High resolution
- Three channels with index position
- Differential output
- Precise positioning
- Stable signal level
Customization Available
- Cable or terminal outputs
| Part Number | E9 |
|---|---|
| Encoder Type | 3 Channel Optical |
| Number of Lines Available (LPR) | 100, 144, 200, 256, 300, 360, 500**, 512** |
| Ambient Operating Temperature Range (°C) | -40 to +85 |
| Ambient Operating Temperature Range (°F) | -40 to +185 |
| Weight (g) | 6 |
| Weight (oz) | 0.22 |
| Code Wheel Moment of Inertia (10ˉ⁷ x kgm²) | 0.12 |
| Count Frequency, Max (kHz) | 200 |
| Electrical Phase Shift (degree) | 90 ± 20 |
| Length (in) | 0.79527559 |
| Length (mm) | 20.2 |
| Document | Document Type | Language | File Type |
|---|
