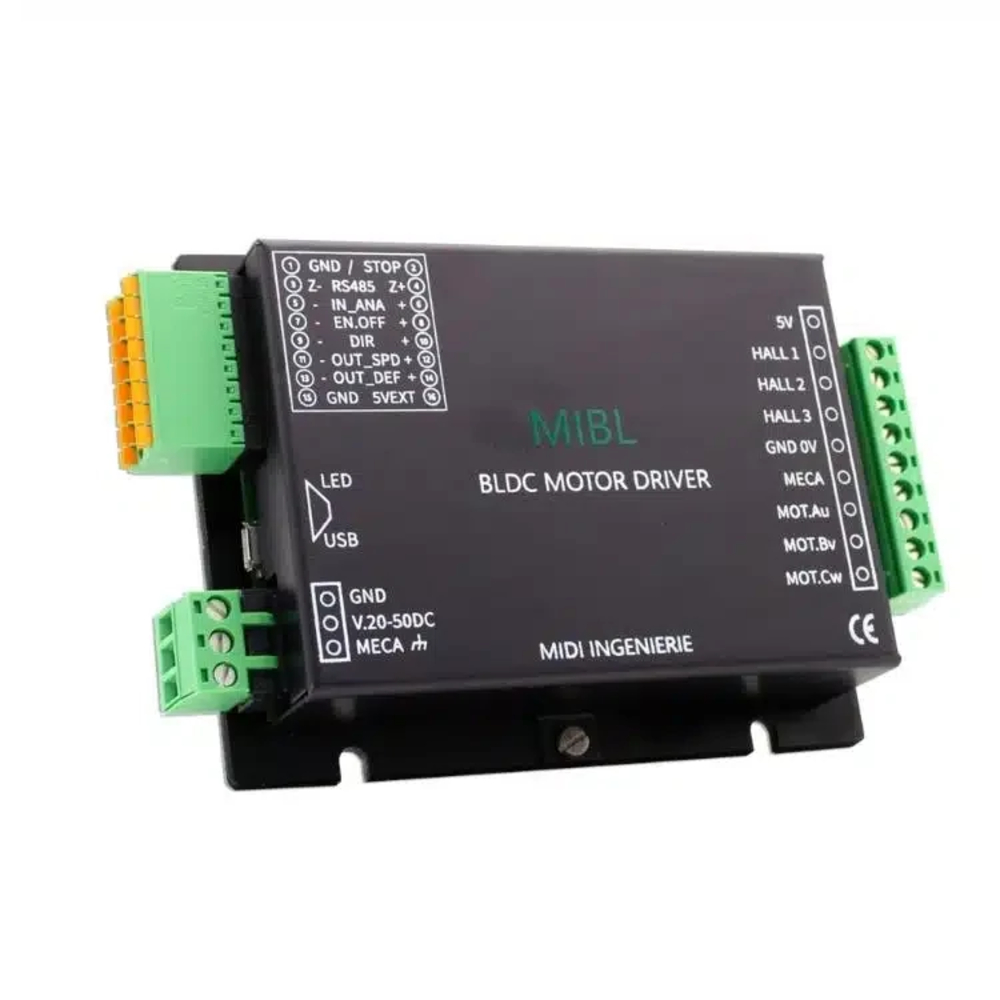

MIBL 0520 Motor Controller
MIBL 0520
The MIBL 05020 is a compact power controller intended for the control of electronically commutated (brushless) motors. This controller features the capability to control motors from ten watts to several hundred watts in the 4 quadrants, with positioning and phase switching ensured by hall effect sensors.
| Part Number | MIBL 0520 |
|---|---|
| Weight (g) | 219 |
| Weight (oz) | 7.725 |
| Continuous Input Power, Max (W) | 720 |
| Current Limit (A DC) | 20 |
| Nominal Voltage, Max (V) | 48 |
| Nominal Voltage, Min (V) | 20 |
| Document | Document Type | Language | File Type |
|---|---|---|---|
| specifications_mibl.pdf | Specification Page |
|
|
| software_MIBL0520.zip |
|
||
| ihm-MIBL05.exe | Other |
|
