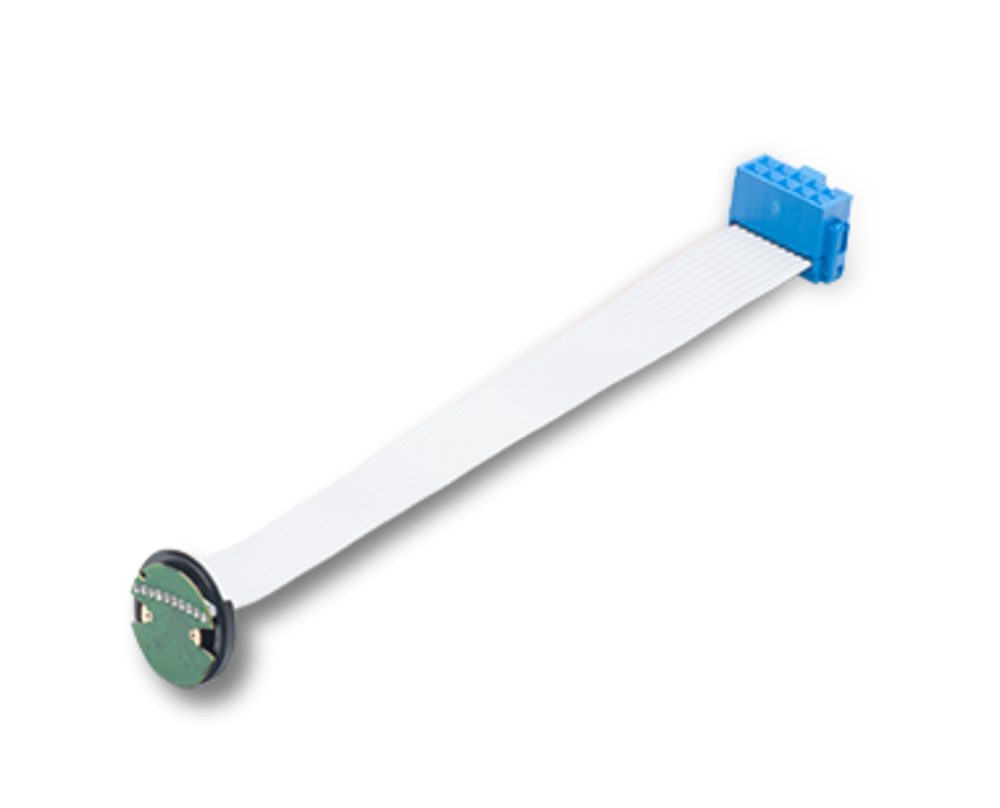

M-Sense22 Magnetic Encoder
M-Sense22
The M-Sense22 magnetic encoder features the latest in chip technology, providing a high degree of accuracy ideal for applications requiring accurate positioning and closed loop motion feedback. The M-Sense22 is available with a wide resolution range up to 1024 lines and includes an integrated line driver. The M-Sense22 encoder is also capable of providing incremental and absolute feedback.
Product Highlights
- Accuracy up to 1.5 degrees
- Integrated RS422 line driver
- Any resolution up to 1024
- Incremental and absolute feedback available
Customization Available
- Cable or terminal outputs
- Integrated line driver
- Connectors
- Encoder capabilities: Magnetic, Absolute Digital, Sine/Cosine options
- Axial and radial cable output available
| Part Number | M-Sense22i | M-Sense22a |
|---|---|---|
| Ambient Operating Temperature Range (°C) | -40 / 125 | -40 / 125 |
| Ambient Operating Temperature Range (°F) | -40 / 257 | -40 / 257 |
| Weight (g) | 8 | 8 |
| Weight (oz) | 0.28 | 0.28 |
| Cable Type | 10x AWG28 | 6x AWG28 |
| Code Wheel Moment of Inertia (10ˉ⁷ x kgm²) | 0.04 | 0.04 |
| Count Frequency, Max (kHz) | 4000 | 4000 |
| Duty Cycle (%) | 25-75 | N/A |
| Electrical Phase Shift (degree) | 15-235 | N/A |
| INL (Integral Non Linearity), Max (degree) | 1.5 | 1.5 |
| Line Driver Parameters | 4mA / 10MHz | 4mA / 10MHz |
| Document | Document Type | Language | File Type |
|---|
