B0512N1029 Autoclavable Slotted Brushless DC Motor

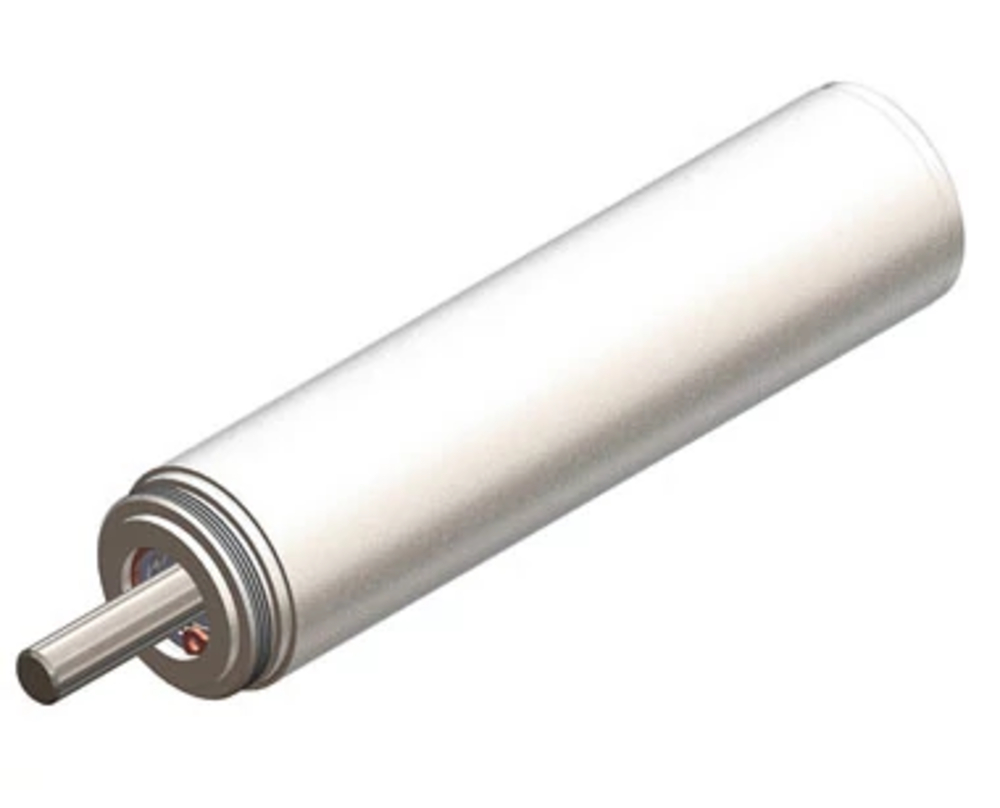

High Speed Surgical Motor (B0512N1029)
This size 5 brushless DC slotted motor is optimized for high-speed drill applications. Motor torque and speed make this an ideal solution for powered surgical hand tools that are used for high-speed drilling in spine, cranial, maxiofacial, and otologic (ear) surgery. Portescap mini motors for surgical power applications are designed for high reliability in autoclave environments.
Product Highlights
- Designed for autoclave applications requiring up to 1000 autoclave cycles
- Optimized for use in surgical powered devices
- High torque and high speed design optimized for precise drilling into dense bone
- High speed electric motors allow for increased precision, cleaner cuts, and shorter surgery cases
- Lightweight and low vibration for increased surgeon tactile feel
- High efficiency to optimize thermal performance at high speeds
- Small size allowing smaller surgical hand tool designs and improved ergonomics
- Withstands high current draw
Applications
- Cranial Drills
- Craniomaxiofacial Drills
- Otologic (Ear) Drills
- Powered ENT Debrider
- Powered ENT / Neuro and Spine Drills
- Surgical Robots
| Part Number | B0512N1029 |
|---|---|
| Motor Diameter (in) | 0.5 |
| Motor Diameter (mm) | 12.7 |
| Standards Met | RoHS Compliant |
| Axial Static Force w/o Shaft Support, Max (lbs) | 3.33 |
| Axial Static Force w/o Shaft Support, Max (N) | 14.81 |
| Back EMF Constant (V/1000 rpm) | 0.515 |
| Continuous Mechanical Power, Max (@25°C) (W) | 87.4 |
| Electrical Time Constant (ms) | 0.07 |
| Hall Sensor Electrical Phasing (electrical °) | 60 |
| Inductance - Phase to Phase (mH) | 0.094 |
| Line to Line Resistance (Ohm) | 1.33 |
| Mechanical Time Constant (ms) | 2.62 |
| Motor Constant (mNm/W½) | 4.27 |
| Motor Constant (oz-in/W½) | 0.61 |
| Motor Regulation (10³/Nms) | 54944.15 |
| No-Load Current, Typical (mA) | 120 |
| No-Load Speed (rpm) | 97400 |
| Nominal Voltage (V) | 48 |
| Optimization Direction | Bidirectional |
| Thermal Time Constant (s) | 485 |
| Torque Constant (mNm/A) | 4.92 |
| Torque Constant (oz-in/A) | 0.7 |
| Weight (g) | 39 |
| Weight (oz) | 1.36 |
| Winding Temperature, Max (°C) | 155 |
| Winding Temperature, Max (°F) | 311 |
| Ambient Temperature (°C) | 155 |
| Ambient Temperature (°F) | 311 |
| Autoclave Cycles | 1000 |
| Continuous Stall Current (A) | 2.02 |
| Continuous Stall Torque (mNm) | 9.5 |
| Continuous Stall Torque (oz-in) | 1.34 |
| Peak Torque (mNm) | 176.1 |
| Peak Torque (oz-in) | 24.9 |
| Radial Static Force w/o Shaft Support, Max (lbs) | 15.3 |
| Radial Static Force w/o Shaft Support, Max (N) | 68.2 |
| Ratio | - |
| Thermal Resistance (Slotted) (°C/W) | 15.9 |
| Document | Document Type | Language | File Type |
|---|---|---|---|
| High Speed Motor (B0512N1029) Specification Page | Specification Page |
|
|
| High Speed Motor (B0512N1029) drawing | 2D Drawing |
|
|
| High Speed Motor (B0512N1029) 3D drawing | 3D Drawing |
|
