D12 Magnetic Encoder
D12

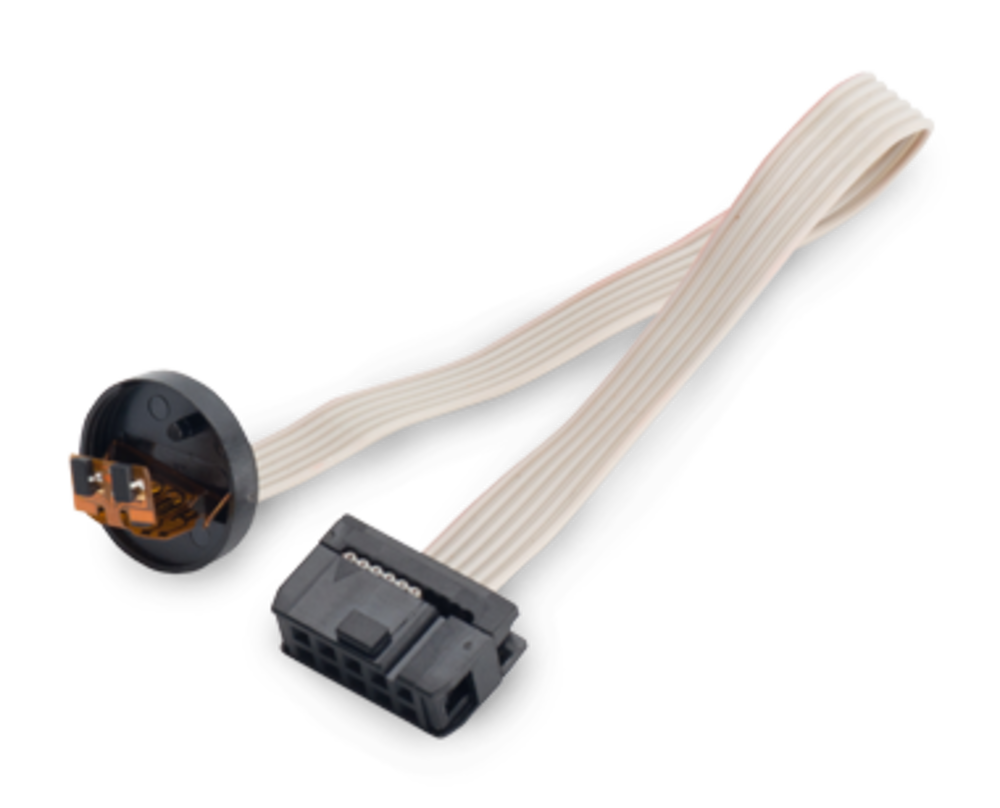

The D12 magnetic encoder allows position monitoring without compromising on package size.
Product Highlights
- Integrative design
- Insensitive to hostile environments
- Low current consumption
- Hall sensors position monitoring
Customization Available
- Cable or terminal outputs
| Part Number | D12 |
|---|---|
| Encoder Type | Integrated Magnetic |
| Number of Lines Available (LPR) | 12 |
| Ambient Operating Temperature Range (°C) | -20 to +85 |
| Ambient Operating Temperature Range (°F) | -4 to +185 |
| Code Wheel Moment of Inertia (10ˉ⁷ x kgm²) | 0.1 |
| Count Frequency, Max (kHz) | 10 |
| Electrical Phase Shift (degree) | 90 ± 40 |
| Length (mm) | 25.5 |
| Document | Document Type | Language | File Type |
|---|---|---|---|
| D12 Specification Page | Specification Page |
|
|
| D12 drawing | 2D Drawing |
|
|
| D12 3D drawing | 3D Drawing |
|
